Overbuilt by Wunder
The Wunderbar Console Featuring the Wunderbahn
The Wunder Audio Wunderbar is an analog console forged from inspiration, innovation and the bold desire to build the most impressive recording desk in the world. The result is a console so accomplished, it features The Wunderbahn, the worlds first desk to come standard with three vintage stereo bus flavors, and employs a fully symmetrically balanced discrete summing bus system. This unprecedented blend of performance, technology, and perfectly crafted build quality is simply the next standard in the pursuit of the perfect recording.
40-Channel Wunderbar Super D with PEQ4 modules, Cinema Display, Patchbay in our NEW Tuxedo Gray color.
Introducing the New Tuxedo Gray Wunderbar! This 40-Channel Super D is LOADED with PEQ4 modules, Cinema Display, and Patchbay.
Fully Discrete Class A signal path, fully transformer balanced. Frequency Response flat from 8 Hz to over 120 KHz, Signal to Noise better than 105 dB, but super musical and cohesive sounding!!
Tuxedo Gray Upgrade
Wunderbar Super D.

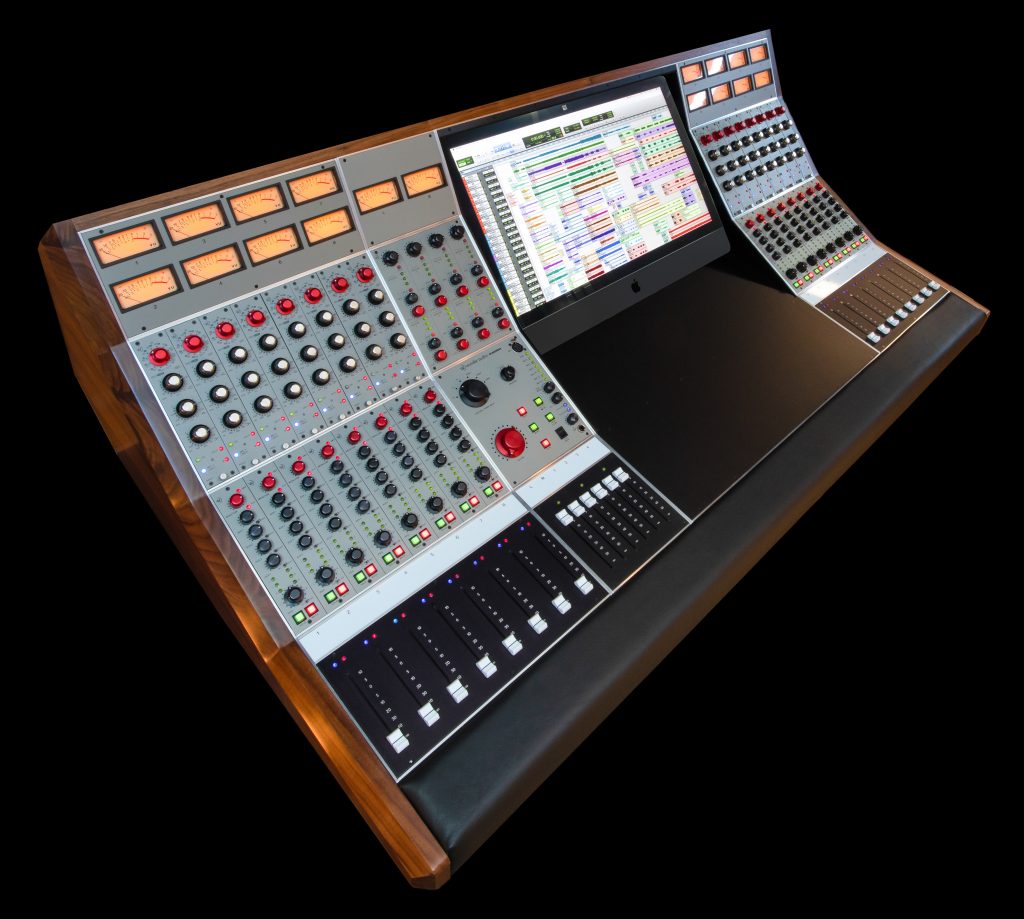

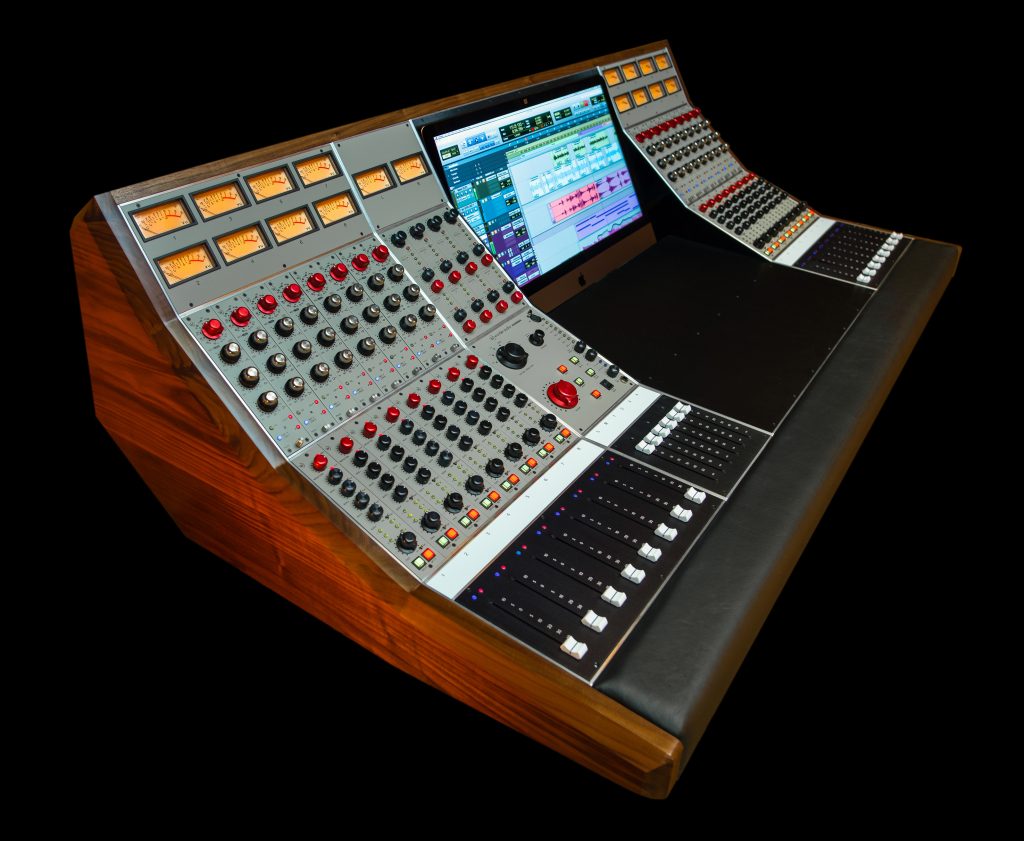

Wunderbar Super D – LOADED with PEQ4 modules! An x8-channel, D-Sub version of the original Wunderbar, this 24 channel Super D is fully loaded with PEQ4 modules with Track/Mix Switching and Insert bypass on every channel and Bus, and 32” Cinema Display with Apple XDR display.
Fully Discrete Class A signal path, fully transformer balanced. Frequency Response flat from 8 Hz to over 120 KHz, Signal to Noise better than 105 dB, but super musical and cohesive sounding!!
FEATURES ONLY AVAILABLE ON THE SUPER D CONSOLE
• 8-Channel Sections Supports D-sub25 8-Channel Cables
• Available with the Wunder Audio PEQ2 or the new PEQ4 four-band EQ
• Available with the new Tuxedo Gray Color as upgrade
• New iMac 27” or 32″ Cinema Display Section
• Expanded Inputs and Outputs
• DAW D-Sub Inputs Plus Mult for Analog
• Balanced Aux Masters
• Track/Mix Flip and Insert Defeat Capability
• Isolated DC Voltage Paths and Audio Paths

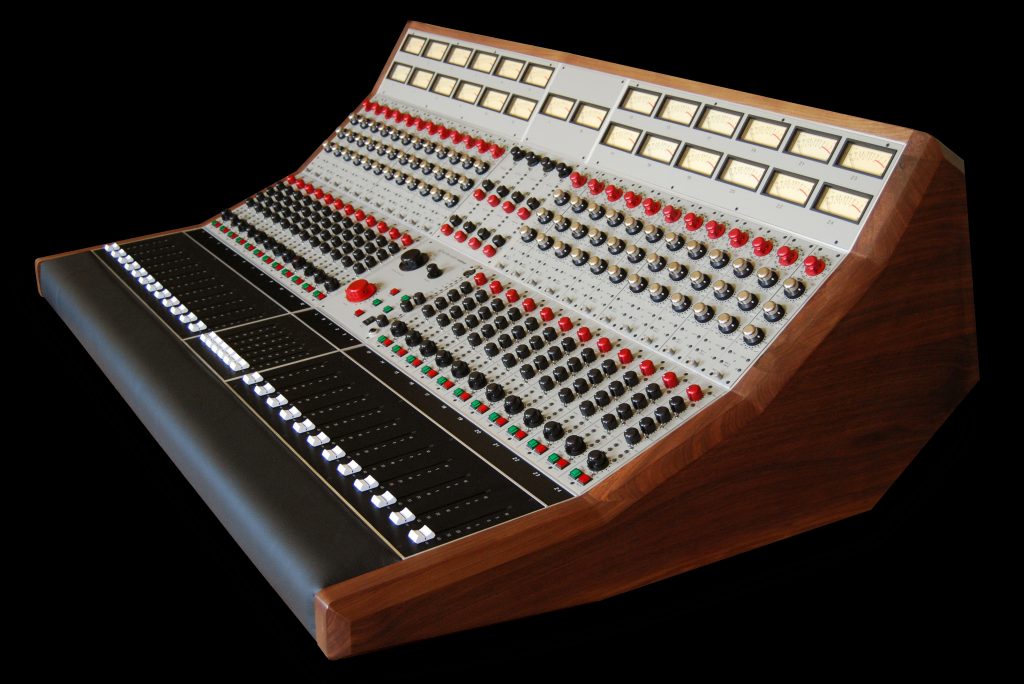

The Original x12-channel Wunderbar
About the Wunderbar
History of the Wunderbar
The Wunderbahn Summing Bus
Inside – The Transformers
Inside – Build Quality
Inside – Expandability
Inside – Signal to Noise
Inside – Sound Stage
Inside – PEQ2 Module
Inside – OP Amps
Videos produced by Fractal Visuals – www.fractalvisuals.com
Design your unique Wunderbar console
Customize your configuration to reflect your engineering style. All Wunderbars are custom and designed to the exact specifications of the client’s special order. Choose from a variety of console sizes and master section positions, internal Patchbay, and Cinema Display.
Wunder Audio continues to cherish the proud tradition of handcrafted excellence. Over a dozen specialists apply their trade in creating the Wunderbar; cable builders alongside machinist, electronic engineers alongside cabinetmakers. All are world-class craftspeople whose purpose is the realization of the personal vision of the individual Wunder Audio customer. The Console can be loaded with the PEQ2, the new PEQ4 four-band EQ, or any combination of the two in 12 to 60 channels, or D-sub from 8 to 56 channels. A “Fully Balanced Busing Scheme” is the heart of the Wunderbar, buffering the ground out of the equation. This results in significant increase in dynamic range while lowering noise substantially. There are transformer balanced direct outputs and inserts on all channels. The Stereo Bus champions The Wunderbahn and has three Stereo Amplifier choices: Wunder, 1272, and the 312.
The Routing Modules
Wunder Audio Powerbar
The 1046 Routing modules are fully transformer balanced Class-A Discrete. Each channel has a monitor fader that is flip-able with the main channel fader. Also featured are six buses with illuminated switches, four auxes that are switchable pre or post, Pan Defeat, 48V phantom, and “Opto Silent” mute. If the console is short loaded, the Routing modules will act as transformer-balanced inputs.
The Master Section
The Master Section includes a Control Room Monitor for monitoring six stereo sources, including buses. Mono, Dim, Mute, and Solo Clear are on large illuminated switches. Select from 3 sets of speakers or a headphone amp with separate volume control. The internal routing of subgroups to the stereo bus eliminates external patching, sparing monitor faders. The Eight-fader monitor section includes solo, pan, and placement into any of the buses. Talkback into any bus/aux is either latching, momentary, or remote. The master section has a large Illuminated master PFL, AFL Solo switch with Solo level.
Other features include: TKD Faders, thick hardwood end-cheeks in an unlimited choice of hardwoods, and full leather armrest.
Board Sizes
Two styles available: Original 12-channel increments from 12-60 channels, and Super D 8-channel increments from 8-56.
Original:
• 12 channels, 20 monitors, 1 Powerbar PSU, Exquisite Trim.
• 24 channels, 32 monitors, 1 Powerbar PSU, Exquisite Trim.
• 36 channels, 44 monitors, 2 Powerbar PSU’s, Exquisite Trim.
• 48 channels, 56 monitors, 2 Powerbar PSU’s, Exquisite Trim.
• 60 channel, 68 monitors, 2 Powerbar PSU’s, Exquisite Trim.
Super D:

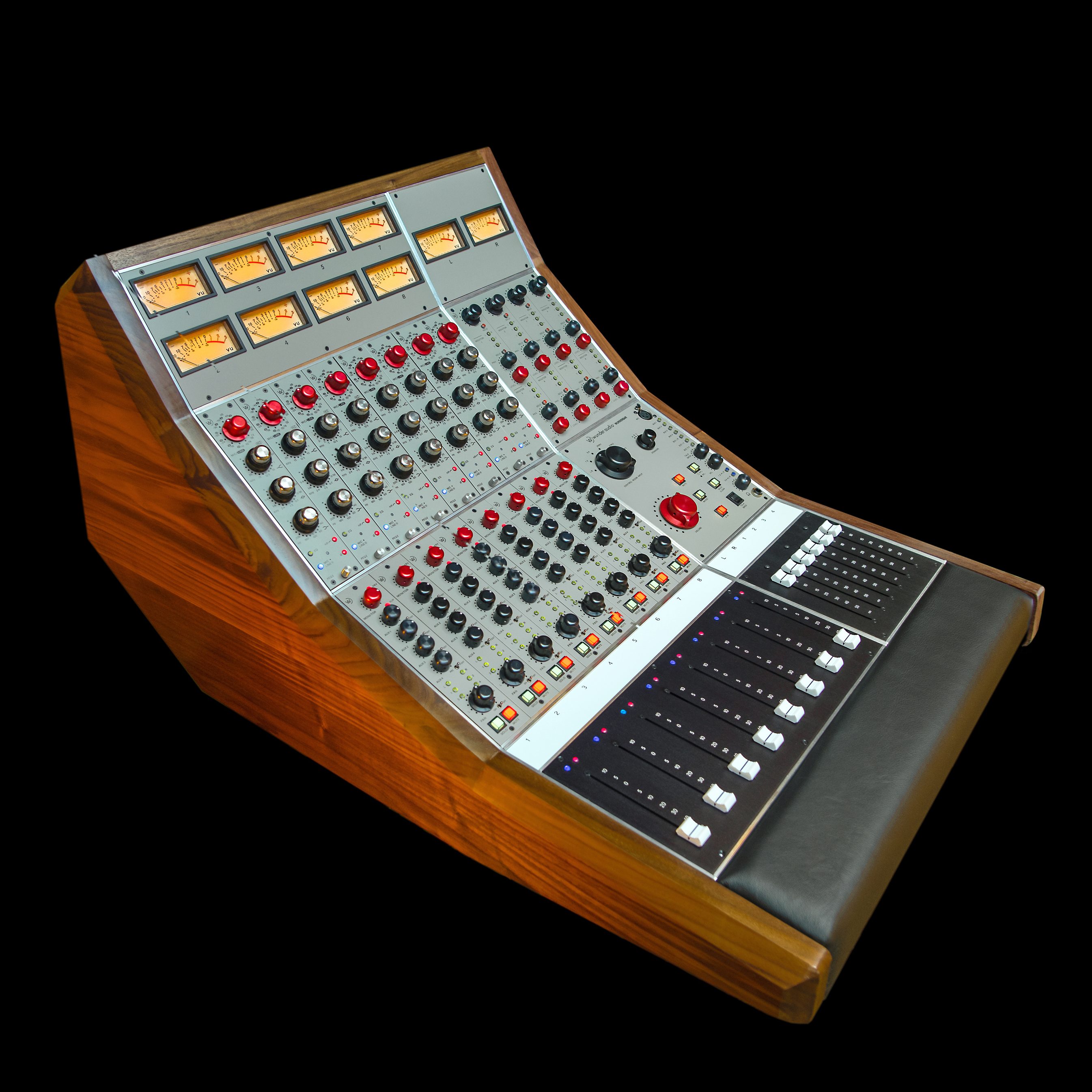

• 8 channels, 16 monitors, 1 Powerbar PSU, Equisite Trim.
• 16 channels, 24 monitors, 1 Powerbar PSU, Equisite Trim.
• 24 channels, 32 monitors, 1 Powerbar PSU, Equisite Trim.
• 32 channels, 40 monitors, 2 Powerbar PSU, Equisite Trim.
• 40 channels, 48 monitors, 2 Powerbar PSU, Equisite Trim.
• 48 channels, 56 monitors, 2 Powerbar PSU, Equisite Trim.
• 56 channels, 64 monitors, 2 Powerbar PSU, Equisite Trim.
Exquisite Trim is 1.5″ Solid hardwood (Oak, Walnut, or Roasted Coffee Bean Birch) and includes End Caps and Meter Bridge and Black or Brown Top Grain Leather Armrest.
Options
• PEQ2 or upgrade to PEQ4 Modules.
• Wunderbar Gray or NEW Tuxedo Gray upgrade.

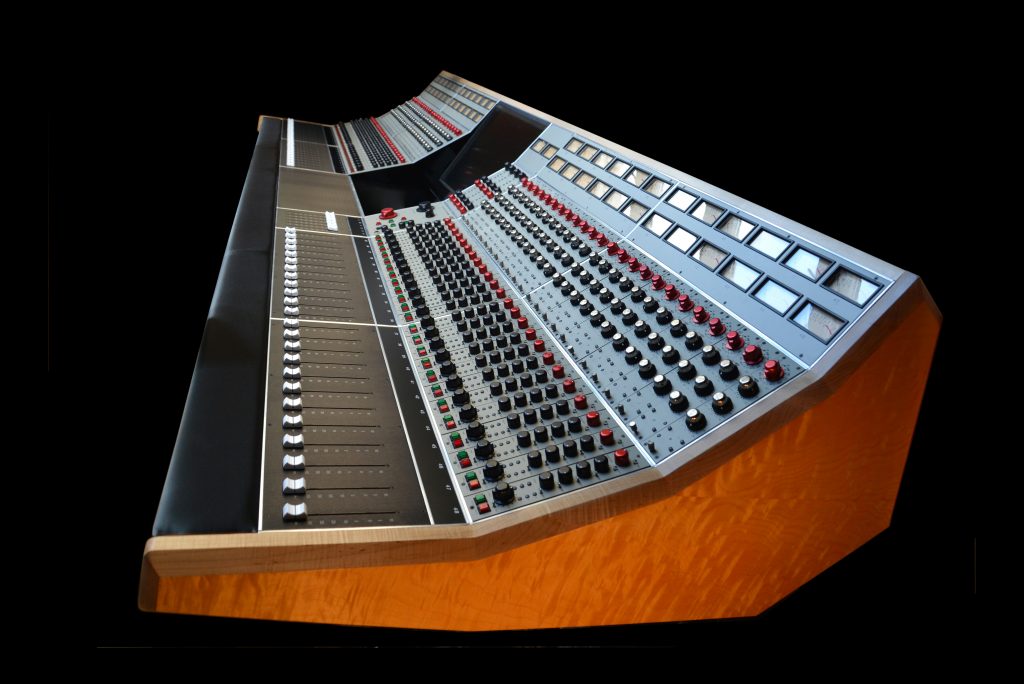

• NEW Exotic Wood package upgrades to an unlimited choice of wood.
• Patch bay section for 8x 19″ wide patch bays (bays not included).
• Center section for 27″ or 32″ flat screen monitor (monitor not included).
• Insert enable/defeat panel via light-pipe buttons. – (Available on the TT patch bay section only)
• Stereo Bus inserts.
• Wunderbar stand w/ Black Hammerite Finish.
Contact Wunder Audio or your Dealer for price. Affirm payments are available through Wunder Audio.
All Wunderbars are custom and require a 50% non-refundable deposit. Please contact Wunder Audio or your dealer for pricing.
